Description

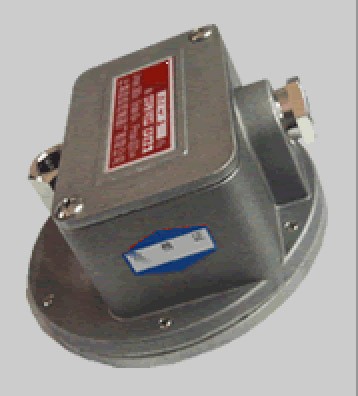

0803321 0803421 0803521 pressure controller, the controller adopts flanged diaphragm type sensor, which can be used for corrosive or viscous fluid medium and medium containing dust or easy to crystallize. The setting value of the controller is adjustable, and the adjustment range is 0.02 ~ 0.6mpa.
The characteristics:
It can be used in corrosive or viscous fluid media and media containing dust or easily crystallized substances.
Switching element: micro switch
Enclosure protection class: IP65
Ambient temperature: -10 ° C to 55 ° C
Medium temperature: 0 ~ 120℃
Installation position: vertical downward pressure interface (allowed to tilt 15℃)
Vibration resistance: 10m/ S2
Repeatability error: ≤1.5%
Contact capacity: AC220V6A resistive load
