Description
Product introduction:

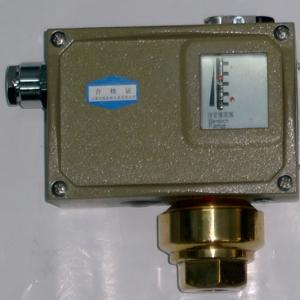

0810100 0810200 0810300 0810400 pressure controller uses bellows type sensors. Can be used for air, gas, water vapor and other neutral gases and water, refrigerant, oil and other liquid media. Range -0.1 …… 2.5Mpa.
Features:
Can be used in vacuum.
◇ Main technical performance:
|
|
Normal type |
|
Explosion-proof type |
|
Working viscosity |
<1×10-3m2/s |
Working viscosity |
<1×10-3m2/s |
|
Switching element |
Micro Switch |
Switching element |
Micro Switch |
|
Explosion-proof grade |
—— |
Explosion-proof grade |
ExedII CT5 certificate number GYB081089X |
|
Enclosure rating |
IP65 (In accordance with DIN40050, equivalent to IP65 in GB4208) |
Enclosure rating |
IP54 (In accordance with DIN40050, equivalent to IP54 in GB4208) |
|
Ambient temperature |
-40℃～＋50℃ |
Ambient temperature |
-40℃～＋50℃ |
|
Medium temperature |
0℃～120℃ |
Medium temperature |
0℃～95℃ |
|
Installation location |
Pressure connection vertically down |
Installation location |
Pressure connection vertically down |
|
Anti-vibration performance |
D502/7D:40m/s2 ; 502/7DK:20m/s2 |
Anti-vibration performance |
Max:20m/s2 |
|
Repeatability error |
≤1% |
Repeatability error |
≤1% |
|
Contact rating |
AC220V 6A(Resistive) |
Contact rating |
DC250V 0.25A(Resistive) 60Wmax |
