Description

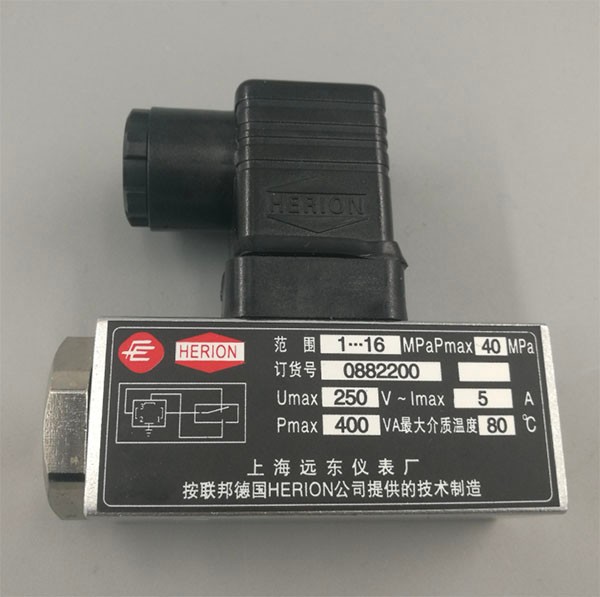

0881100 0881200 pressure controller adopts two types of diaphragm sensors and non-leak piston sensors. D500/18D diaphragm sensors can be used for neutral gases such as air and gas and liquid media such as lubricating oil and light fuel oil. The setting value of the controller is adjustable, and the adjustment range is -0.1...1.6 Mpa.
D505/18D non-leakage piston type sensor can be used for hydraulic oil, lubricating oil, light fuel oil and other liquid media. The setting value of the controller is adjustable, and the adjustment range is 0.5...25 Mpa.
Technical Parameters
Working viscosity: <1×10－3m2/s
Ambient temperature: -25～55℃
Medium temperature: -25～80℃
Switching element: micro switch
Shell protection level: IP54 (in accordance with DIN40050, equivalent to IP54 in GB4208)
Installation position: The pressure port is vertically downward (allowing 15° inclination)
Anti-vibration performance: Max:100m/s2
Repeatability error: ≤2.5%
Contact capacity: AC 220V 6A (resistive)
D505/18D non-leakage piston type sensor can be used for hydraulic oil, lubricating oil, light fuel oil and other liquid media. The setting value of the controller is adjustable, and the adjustment range is 0.5...25 Mpa.
Technical Parameters
Working viscosity: <1×10－3m2/s
Ambient temperature: -25～55℃
Medium temperature: -25～80℃
Switching element: micro switch
Shell protection level: IP54 (in accordance with DIN40050, equivalent to IP54 in GB4208)
Installation position: The pressure port is vertically downward (allowing 15° inclination)
Anti-vibration performance: Max:100m/s2
Repeatability error: ≤2.5%
Contact capacity: AC 220V 6A (resistive)
