Description

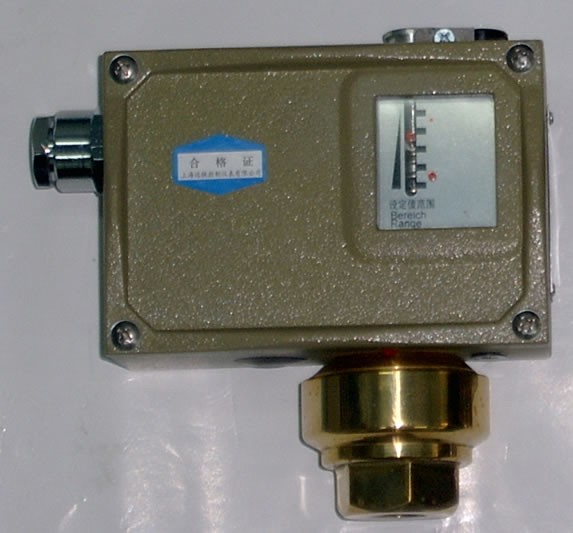

816919 856989 806919 846989 pressure controller adopts non-leakage piston sensor, which can be used for compressed air containing oil mist and other oil mist gas and hydraulic oil, water-oil emulsion and neutral liquid medium with good lubrication performance. The setting value of the controller is adjustable, and its adjustment range is 0.3... 23 Mpa.
Parameters and Specifications:
Switching element: micro switch
Enclosure protection grade: groove seal ring IP54; O-ring IP65 (according to DIN40050 and GB4208 IP54 and IP65)
Ambient temperature: -5 ~ 40℃
Medium temperature: 0 ~ 100℃
Installation position: pressure interface vertical downward (allow Angle 15°)
Vibration resistance: D505/7D: 40 m/ s2; D505/7dk: 20 m/ s2
Repeatability error: ≤2.5%
Contact capacity: AC220V6A (resistance)
