Description
WZPM2-001 WZPM2-002 surface thermal resistance is a surface temperature measuring element, can be made into a variety of surface temperature measuring thermometer products. The WZP series platinum thermal resistance is produced according to the national standard ZBY301-58 (such as the International Electrotechnical Commission IEC751-1983 standard). Due to the advantages of small structure, wide range of use, good reliability, short thermal response time, etc., it can form multiple varieties , Multi-standard series of products for petroleum, chemical industry, power station, metallurgy, light industry, food, textile, medical and health, national defense industry, science, agriculture and machinery industry
WZPM2-001 WZPM2-002 end-face thermal resistance system introduces the production technology of American Rosemount company. It combines the advanced production technology, excellent test methods and many years of manufacturing experience in the contemporary world, creating a new generation of platinum thermal resistance for our country. Products, and make our factory have large-scale and stable production capacity. wzpm2-001 end face thermal resistance is an accurate, sensitive and stable temperature sensor. The platinum thermal resistance element is an inner winding structure made of a micro ceramic tube as a protective tube. The temperature sensing element can be made quite small (small outer diameter can be 1.6 mm), therefore, various miniature temperature sensor probes can be made . WZPM2-001 WZPM2-002 end surface thermal resistance is a surface temperature measuring element, can be made into a variety of surface temperature measuring thermometer products. The WZP series platinum thermal resistance is produced according to the national standard ZBY301-58 (such as the International Electrotechnical Commission IEC751-1983 standard). Because the series products have the advantages of small structure, wide use range, good reliability, short thermal response time, etc., they can form multiple varieties , Multi-standard series products, provide a new generation of high-quality products for petroleum, chemical industry, power station, metallurgy, light industry, food, textile, medical and health, national defense industry, science, agriculture and machinery industry. The working principle of wzpm2-001 end surface thermal resistance is the principle that the resistance value of platinum resistance wire changes with the temperature. It can be used to measure the temperature in the range of -200~800℃. Its advantages are: stable electrical performance, nearly linear relationship between temperature and resistance, and high accuracy. Platinum resistance elements can be used with displayers, recorders, regulators, scanners, data recorders, and computers for accurate temperature measurement and control. wzpm2-001 end face thermal resistance technical parameters
Main Specifications
Index number: Pt100
Accuracy class: Class B
Thermal response time: 0.5<15s
Insulation resistance: The insulation resistance between the housing and the probe is not less than 100MΩ (100V DC).
Temperature measurement range: -200~450
Model specifications

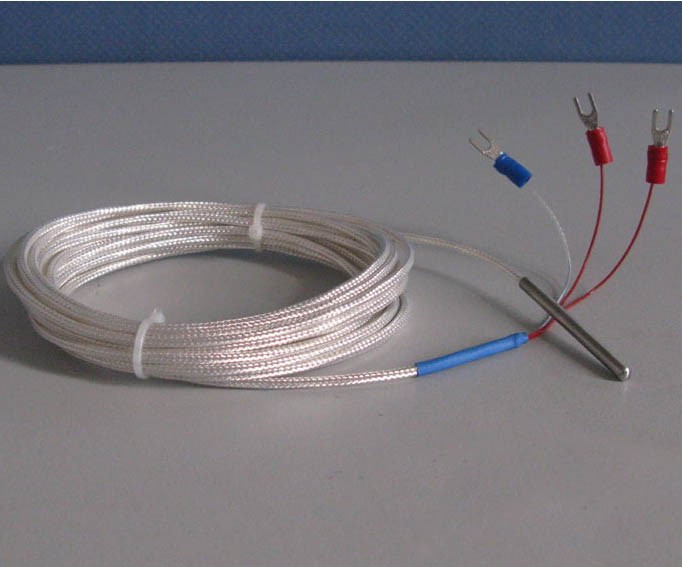

End surface thermal resistance WZPM2-001 PT100 Φ6*3000 main technical indicators
Index number: Pt100
Accuracy class: Class B
Thermal response time: 0.5<15s
Insulation resistance: The insulation resistance between the housing and the probe is not less than 100MΩ (100V DC).
Temperature measurement range: -200~450
Model specifications
1. WZPM2-001 dual surface thermal resistance
1) The end of the 001 temperature measuring head is a block with arc-shaped insulating material that is very smooth, which can reduce friction with the object to be measured. The temperature measuring element is installed in the middle of the insulating material.
2) The probe is suitable for measuring the temperature of various cylinders and the outer wall of the drum, such as smooth metal body, rubber, plastic, etc.
3) Type WZPM-101S is a matching type of type 001 temperature measuring head and handle.
4) Type WZPM-201S is a matching type of type 001 temperature measuring head and straight shank.
2. WZPM-002 single surface thermal resistance
1) The insulating material at the end of the 002-type temperature measuring head has three convex positions to limit the distance between the measured object and the temperature measuring element and reduce the friction between the element and the measured object.
2) The temperature measuring head is suitable for measuring the temperature of casting molds, planes, walls, molds, bearings, mechanical equipment and other stationary solid surfaces.
3) WZPM-102 type is the matching type of 002S temperature measuring head and handle type.
4) WZPM-202 type is the matching type of 002S temperature measuring head and handle type. …
3. Platinum resistance of WZPM-301S fixed roller surface
The 301S platinum resistance can be fixed on the mechanical equipment to continuously measure the surface temperature of the drum. It can be displayed or directly controlled by connecting with the display or regulator through the wire.
The installation method is up to the user.
In many occasions, according to the process requirements, on-site mobile temperature measurement is required. It is used in conjunction with the XMX pocket temperature digital display. It is widely used in industrial sectors such as textile, printing and dyeing, papermaking, plastics, and rubber.
WZPM series surface thermal resistance is divided into handle type, straight handle type and fixed type. There are two types of temperature measuring handles for matching, which can be selected according to the different shapes and needs of the measured object.
The matching instrument XMX pocket temperature digital display instrument is light in weight and easy to carry, especially for the processing site.
The platinum resistance temperature measuring head is made of thin-film platinum resistance elements, so it has the advantages of sensitivity, fast thermal response time, stable quality and long service life.
